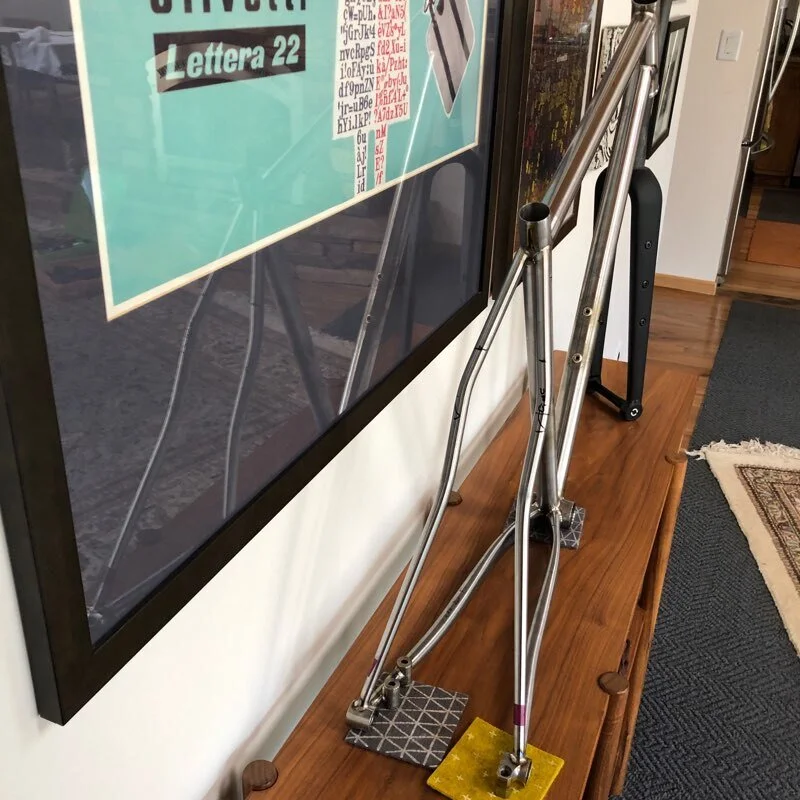

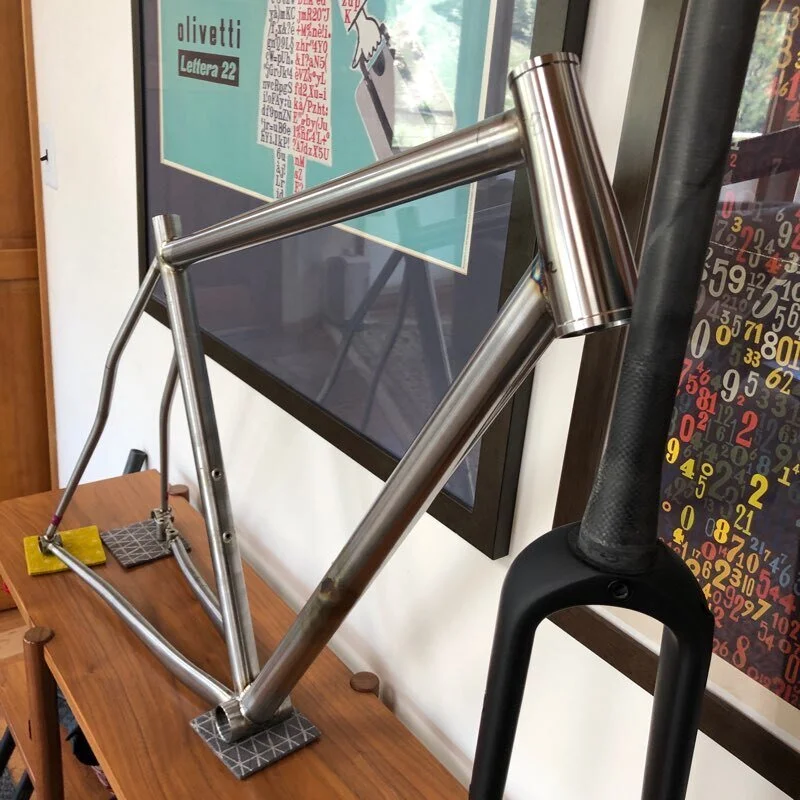

GT SL “Open Platform” Frames

These frames are my stock version of my Gravel Traveler. If there is one in stock in the dropdown it means I have that frame ready to go to paint for you.

The basic idea behind the GT SL Open Platform is that the frame design is already done the basic idea of the bike is ready to go, ie read the spec list below and that is how it comes. The SL part is that I have gone through even piece of material on the bike to find the most weight savings I can. In the case of these models, I have used the lightest (and notably the most expensive) headtubes, bb shells and tubing. It was legitimately days and days of working with materials on a scale to optimize the material mix. Anyway, the tubeset is a mix of Spirit HSS and Life tubing on the front end, and Spirit and Life for the back end to maximize strength to weight.

A note about design and fit.

The 55cm frame on listed for example, is designed to be able to handle quite a bit of type 2 fun. It has the ability to fit someone in that medium to large range depending on how you set up the cockpit. The top tube and reach are intensionally longer ish, to allow folks to run a proper “gravel fit” if they want but if they want run a more road ish fit that should work.

As always feel free to shoot me a note if you have any questions.

Stock Spec’s for options are:

• BSA 68mm bottom bracket shell

• 1-1/8” - 1-1.5” tapered head tube internally relieved for added weight savings

• 27.2 seat post spec.

• 142x12 thru axle

• Flat Mount brakes

• Triple zip guides running under down tube

• 2 standard bottle bosses

• lower set of fender bosses.

• This Frame uses Syntace Dropout, which is NOT UDH, Sram Full Mount compatible.

Add on’s:

• Fork: I offer 10% off forks if bought as a frame set, for the Obikeco Fork or Enve I am offering a very healthy discount.

  • Obikeco Carbon Adventure Fork(47mm or 52mm Offset) + $375 (regularly $550). Has all the things. Obikeco Fork Specs Here

  • Enve G-Series Fork: $525 (regularly $650)

• Any Additional bottle boss: $50/boss

• Traditional cable stops (lightest option) or external housing clip system. +$150

• Paint Upgrades: All Olivetti frames comes with Single Color Powder and Decal set.

  • 2 color wet paint is $700

  • Fork to Match is $200

  • Additional colors $150/color

  • any other component to match $100-150 depending on quote.

  • Custom graphic design is billed at $125/hr

• Build Kits can be quoted on request. Generally they range from an all alloy builds with mid level (grx 810 or Rival 22 just examples and not exact) +$2900 (not including fork) to +$7500 for the whiz bang wireless and full Enve to whatever your budget can handle really.
